Bendix D-2 Air Governor | OR275491

Description

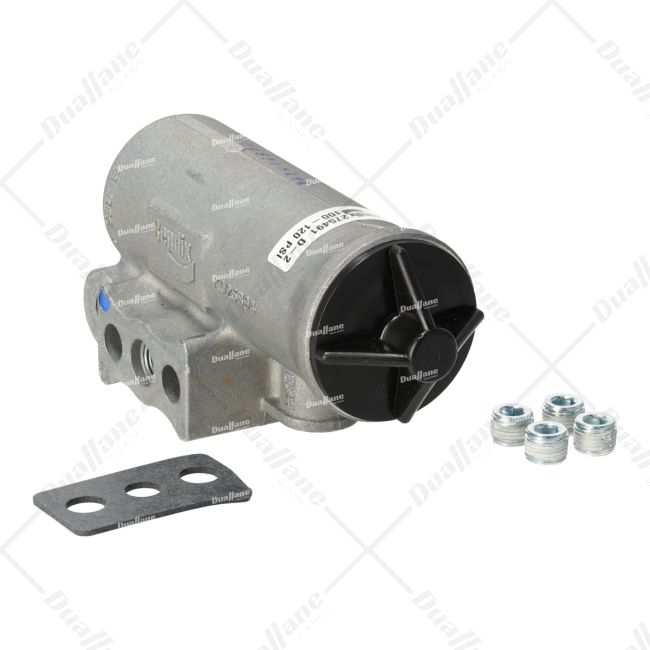

The BW OR275491 represents a Bendix D 2 Air Governor, which serves the purpose of regulating and maintaining the air pressure in air brake systems. Its primary function is to ensure that the pressure levels within the system remain safe and optimal at all times. The governor comes equipped with pressure settings for both 'cut in' and 'cut out,' allowing for management of the braking system. Designed to prioritize reliability and performance, this governor boasts a design with ports dedicated to efficient air pressure control. Without a doubt, the BW OR275491 Bendix D 2 Air Governor plays a role in any air brake system as it guarantees pressure control for enhanced safety and efficient braking capabilities.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Minimum Operating Temperature: -40 Deg. F
• Maximum Operating Temperature: 200 Deg. F
• Adjustable: Yes
• Core Class: 1R
• Core Group: 1R
• Weather Resistant: No
• Length: 60.45 mm
• Width: 58.67 mm
• Height: 126.75 mm
• Mounting Dimension: 0.34 in
• Exhaust Port Thread Size: 1/8-27 NPT in
• Unloader Port Thread Size: 1/8-27 NPT in
• Reservoir Port 1 Thread Size: 1/8-27 NPT in
• Reservoir Port 3 Thread Size: 1/8-27 NPT in
• Reservoir Port 2 Thread Size: 1/8-27 NPT in
• Weight: 0.51 kg
• Pressure Settings Cut In: 100 psi
• Pressure Settings Cut Out: 120 psi
