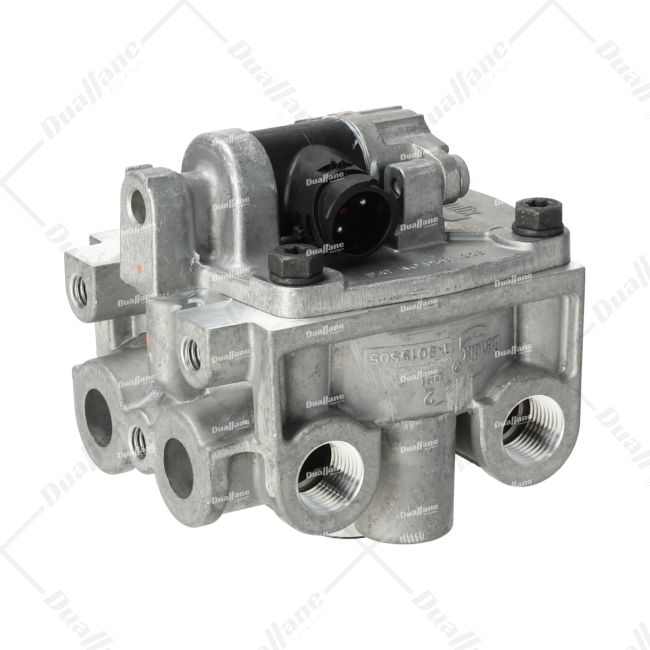

Bendix ATR-6 Traction Relay | K078420

Description

The BW K078420 Bendix ATR-6 Traction Relay is a critical component designed to enhance the performance of your vehicle's traction control system. This relay is built with precision, featuring various port sizes and configurations to ensure efficient control of air pressure. With a 12V voltage rating and 5.50 psi crack pressure, it provides reliable control over traction-related functions. The relay's operating temperature range extends from -40° F to 185° F, making it suitable for various environmental conditions. Additionally, its closed delivery port type and dust shield exhaust type enhance durability and reliability.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Control Port Size: 1/4-18 NPT in
• Supply Port Thread Size: 1/2-14 NPT in
• Delivery Port Thread Size: 3/8-18 NPT and 1/2-14 NPT in
• Control Port Thread Size: 1/4-18 NPT in
• Supply Port 1 Thread Size: 1/2-14 NPT in
• Mounting Thread Size: 3/8-16 UNC-2B in
• Control Port Position: 0 deg
• Delivery Port 8 Thread Size: 3/8-18 NPT in
• Delivery Port 7 Thread Size: 3/8-18 NPT in
• Delivery Port 1 Thread Size: 1/2-14 NPT in
• Delivery Port 2 Thread Size: 1/2-14 NPT in
• Delivery Port 3 Thread Size: 1/2-14 NPT in
• Delivery Port 4 Thread Size: 1/2-14 NPT in
• Voltage: 12 V
• Crack Pressure: 5.50 psi
• Crack Pressure: 5.50 psi
• Way Count: 2-Way
• Number Of Supply Port: 1
• Delivery Port Type: Closed
• Connector Type: 2 Way Circular
• Mounting Orientation: 180 Degree
• Exhaust Type: Dust Shield
• Exhaust Port Type: Dust Shield
• Minimum Operating Temperature: -40 Deg. F
• Maximum Operating Temperature: 185 Deg. F
