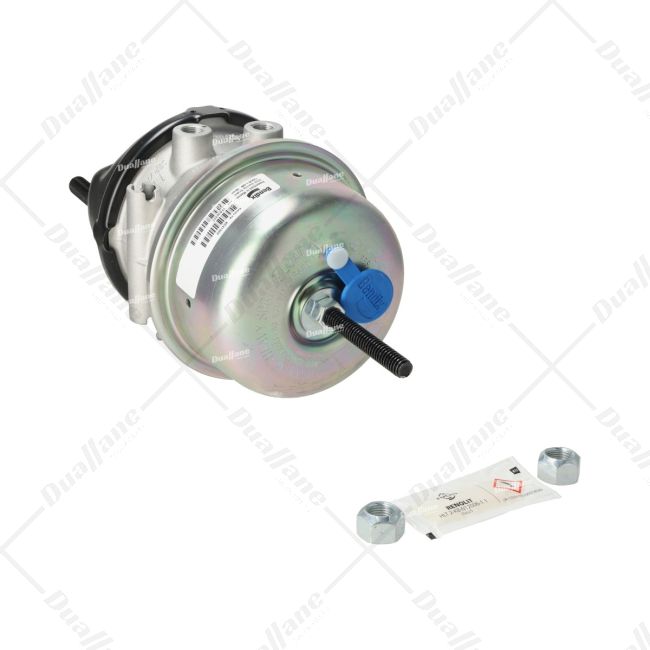

Bendix Air Disc Spring Brake Chamber | K041960

Description

The BW K041960 Bendix Air Disc Spring Brake Chamber is a part of air brake systems designed to ensure braking performance. This particular spring brake chamber has dimensions of 400 mm in length, 200 mm in width and 200 mm in height, allowing it to generate braking force. It comes with a stroke length of 2.50 inches and a push rod length of 0.59 inches, providing control over the brakes. The stud thread size is M16 X 1.50 mm. The port angle measures 270 degrees. Additionally, this chamber includes a parking port with a thread size of 3/8 18 NPTF and a service port marked as number 11 with the thread size (3/8 18 NPTF). Operating under the T20/24 chamber type, it maintains functionality across temperatures ranging from -40° F to 176° F.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Length: 400 mm
• Width: 200 mm
• Height: 200 mm
• Stroke Length: 2.50 in
• Push Rod Length: 0.59 in
• Stud Thread Size: M16 X 1.50 mm
• Port Angle: 270 deg
• Mounting Stud Center to Center Length: 4.75 in
• Mounting Stud Length: 1.73 in
• Parking Port Thread Size: 3/8-18 NPTF in
• Clamp Angle: 90 deg
• Service Port 11 Thread Size: 3/8-18 NPTF in
• Chamber Type: T20/24
• Minimum Operating Temperature: -40 Deg. F
• Maximum Operating Temperature: 176 Deg. F
