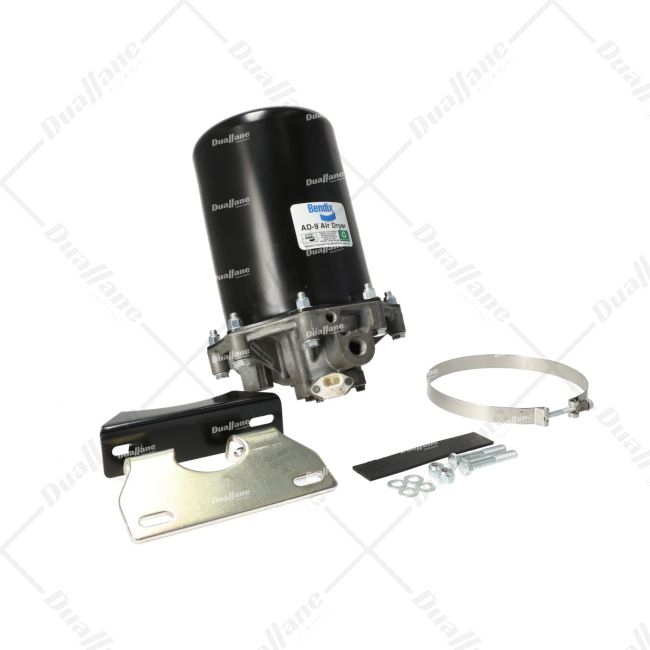

Bendix AD-9 Air Dryer | 800202

Description

The Bendix AD-9 Air Dryer, model BW 800202, is a part of air brake systems. It plays a role in eliminating moisture and contaminants from compressed air to ensure the reliability of the braking system. With dimensions of 223 mm in length, it is suitable for a range of vehicles. The air dryer features a 1/2 NPT inlet and outlet port thread size as a 1/2-14 NPT supply port thread size. The control port has a thread size of 1/4-18 NPT. Its cartridge type is standard with a hard seat purge valve type and an opening pressure safety valve set at 200 psi. Operating on a 12V voltage supply it also includes a 75W heater that allows it to function efficiently in extremely cold temperatures down to -40° F.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Length: 223 mm
• Width: 223 mm
• Inlet Port Thread Size: 1/2 NPT in
• Outlet Port Thread Size: 1/2 NPT in
• Supply Port Thread Size: 1/2-14 NPT in
• Control Port Thread Size: 1/4-18 NPT in
• Cartridge Thread Size: 5/8-11 UNC 2A in
• Mounting Thread Size: 3/8-24 UNF 2A in
• Delivery Port 1 Thread Size: 1/2-14 NPT in
• Cartridge Type: Standard
• Governor Included: No
• Purge Valve Type: Hard Seat
• Safety Valve Opening Pressure: 200 psi
• Voltage: 12 V
• Heater Voltage Rating: 12 V
• Heater Wattage: 75 W
• Minimum Operating Temperature: -40 Deg. F
