Alliance Rotary Fan Switch | N83 323063

Description

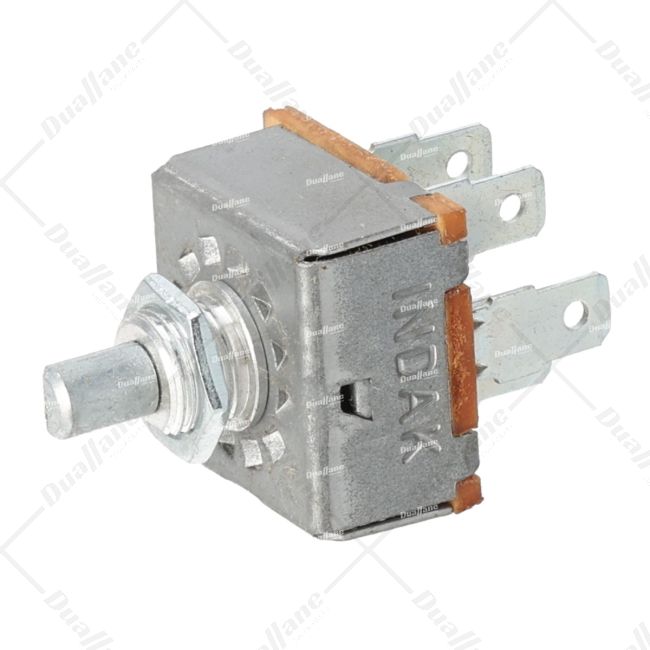

The ABP N83 323063 Alliance Rotary Fan Switch is a versatile switch designed for controlling the speed and operation of a vehicle's fan. This switch offers four switch functionalities, including off, low, medium, and high settings, allowing you to adjust the fan speed based on your cooling needs. It features a 7/16-28 UNF thread size for installation and has an overall depth of 1.25 inches. The terminal size is 1/4-inch and uses a 1/4-inch male blade terminal type. This switch is a double pole 3-throw (DP3T) type, offering various electrical pathways for different fan speed settings. It operates on a 12V electrical system and has an ampere rating of 15 A, making it suitable for effectively controlling a vehicle's cooling fan.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Switch Functionality: Off, Low, Medium, High
• Height: 0.62 in
• Shaft Diameter: 0.25 in
• Base Length: 1.15 in
• Base Width: 1.06 in
• Thread Size: 7/16-28 UNF in
• Overall Depth: 1.25 in
• Terminal Size: 1/4 in
• Flange To Shaft Height: 0.62 in
• Terminal Type: 1/4 in Male Blade
• Switch Type: DP3T
• Voltage: 12 V
• Ampere Rating: 15 A
