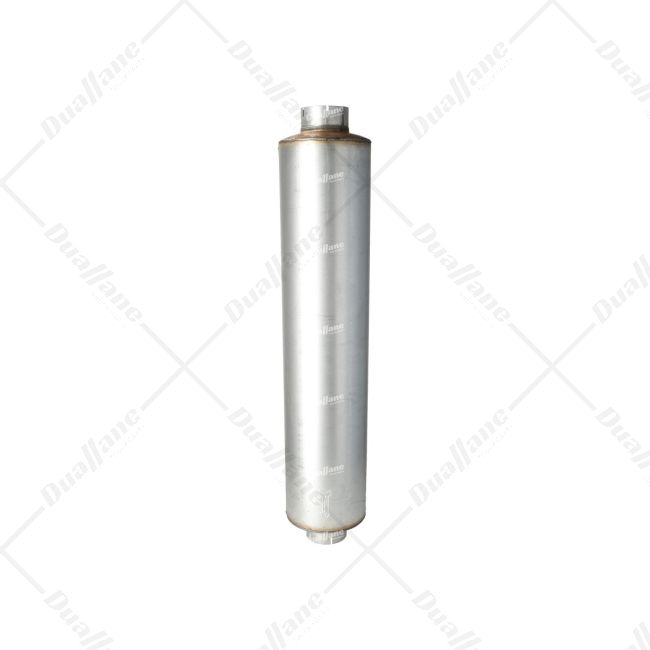

Donaldson Style 1 Round Muffler | M100463

Description

The DN M100463 is a Style 1 Round Muffler by Donaldson, suitable for various applications. It has an inlet diameter of 5.03 inches and an outlet diameter of 5.03 inches. The muffler's body has a maximum diameter of 10.06 inches and a body length of 44.44 inches, resulting in an overall length of 51.00 inches. This muffler is designed to handle different airflow rates, with a rated flow of 2338 cfm in the low range, 3097 cfm in the mid-range and 3260 cfm in the high range. It's also capable of managing back pressure, with 0.98 inches Hg (25 mm Hg) in the low range, 2.01 inches Hg (51 mm Hg) in the mid-range and 2.99 inches Hg (76 mm Hg) in the high range. The muffler is effective at reducing noise, attenuating sound by 13 dBA in the low range and 18 dBA in the high range, making it a valuable component for noise control in various equipment and machinery.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Inlet Diameter: 5.03 in (127.64 mm)
• Outlet Diameter: 5.03 in (127.64 mm)
• Body Diameter Maximum: 10.06 in (255.5 mm)
• Body Length: 44.44 in (1128.8 mm)
• Overall Length: 51.00 in (1295.4 mm)
• Rated Flow LR: 2338 cfm (66.2 m³/min)
• Rated Flow MR: 3097 cfm (87.7 m³/min)
• Rated Flow HR: 3260 cfm (92.3 m³/min)
• Back Pressure Low-Range: 0.98 in Hg (25 mm Hg)
• Back Pressure Mid-Range: 2.01 in Hg (51 mm Hg)
• Back Pressure High-Range: 2.99 in Hg (76 mm Hg)
• Attenuation LR: 13 dBA
• Attenuation HR: 18 dBA
• Style: Style 1
